18-19.5 18 PR ALLIANCE 224 165B E-2 TL

Description

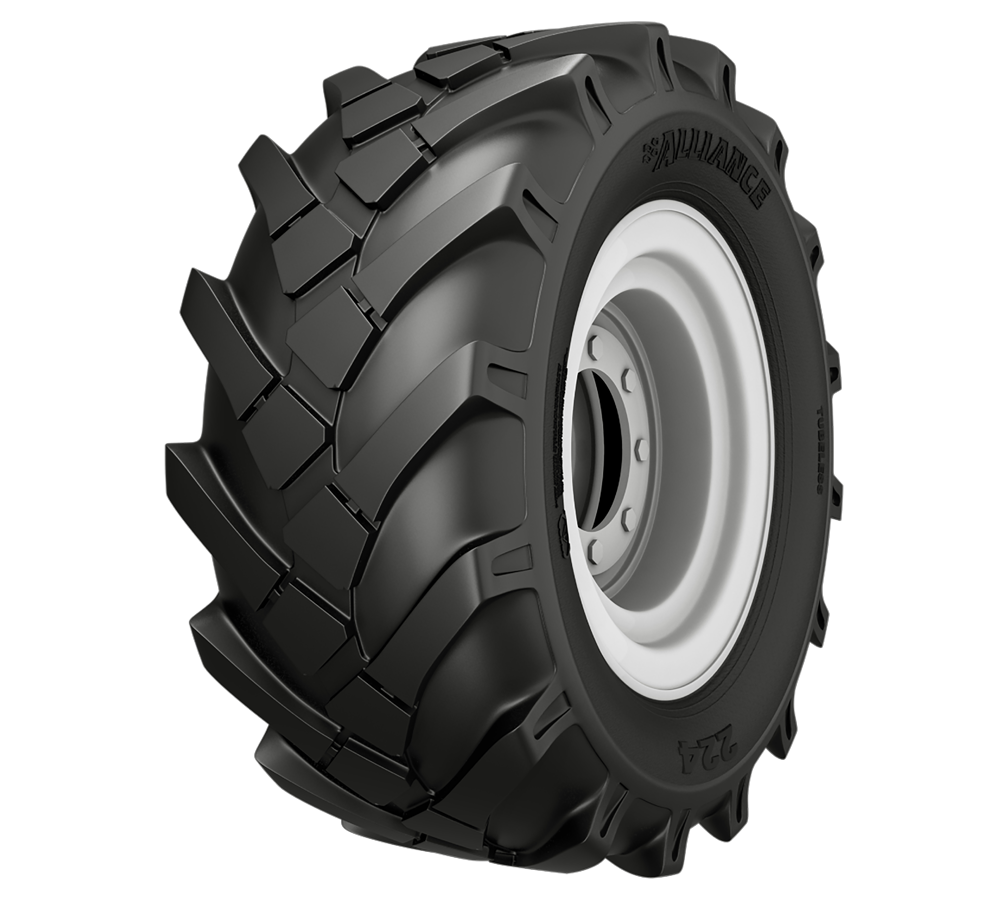

The Alliance 224 bias ply tyre has been designed for use with compact wheel loaders, cranes, dump trucks and excavators working in construction applications. The wide-base design offers increased stability whilst the tread pattern offers excellent traction properties in all working environments. A heat resistant and cut-and-chip compound helps to increase the tyre's durability and life cycle.

Features

  • Bias ply trye for construction equipment.
  • Wide-base for stability.
  • Heat resistant and cut-and-chip resistant for increased durability.

Specification

Size
18-19.5
Brand
ALLIANCE
Pattern
224
Load/Speed Index
165B
Ply Rating
18
TT/TL
TL
Construction
BIAS
Nominal Section Width
18
Rim
19.5
TRA
E-2
Recommended Rim
14
Permitted Rim
13
Section Width
457 mm
Overall Diameter
1080 mm
Static Load Radius
507 mm
Rolling Circumference
3352 mm
Tread Depth
24.00 mm
Max Load (KG)/Speed (KM/H) 1
5150/50
Inflation Pressure Bar
7.25
Specification 1
HEAT RESISTANT COMPOUND
Specification 2
CUT AND CHIP RESISTANT COMPOUND
Warranty
5 YEARS
