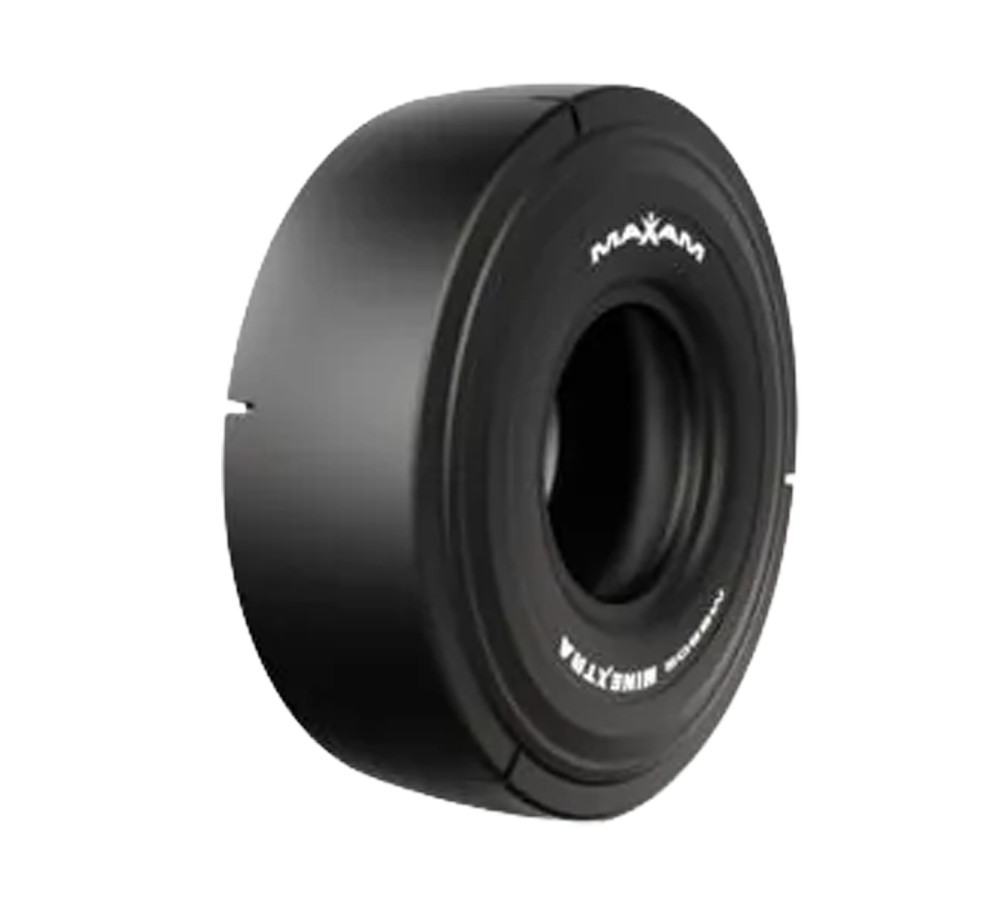

26.5R25 MAXAM MS502 209A2 L-5S TL

Description

For equipment operating in highly abrasive material environments where maximum protection from penetrations and cuts is needed.

Features

  • Extra deep L5S design provides highest resistance to wear and cutting, improving tire life and lowering operating cost.
  • Deep undertread for improved puncture resistance.
  • Reinforced bead, shoulder, and sidewall for increased cut resistance.
  • Specialized mining compound for increased cut and impact resistance.

Specification

Sector
EARTHMOVER
Application
EARTHMOVER
Range
EARTHMOVER L-5S
Size
26.5R25
Brand
MAXAM
Pattern
MS502
Load/Speed Index
209A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
26.5
Rim
25
TRA
L-5S
Star Rating
**
Recommended Rim
22.00/3.0
Section Width
684 mm
Overall Diameter
1794 mm
Tread Depth
90.00 mm
Max Load (KG)/Speed (KM/H) 1
18500/10 WHEN 650 KPA
Inflation Pressure Psi
94
Inflation Pressure kPa
650
